Programmable Garden Watering Timer LCD Display Automatic Irrigation Controller

Overview:
1. Easy to Install: no need for tools, simply fit the timer onto the tap/faucet and connect hose attachment to the male snap-on connector, that's it!
2. Easy to Use: without any complicated numbers, symbols, operations or settings, just twist the dial of HOW LONG and HOW OFTEN to your desired duration and frequency, it will automatically work as you set!
3. No worry of your plants, lawns, garden or farmland anymore when you're on a business trip, weekend jaunt or calling on your relatives/friends.
4. Duration setting from minimum 1 minute to maximum 120 minutes; intervals setting from minimum 1 hour to maximum 72 hours.
5. Passed-Quality: bearable water pressure up to 46.89psi, no worry of bursting or cracking.

Use method:
First, install the battery. the water valve will be self-check. Then ball valve will turn to close status.
Second, you can turn the B button to the cycle time that you need.
Third, turn the A button to a number that will be continuous irrigation.
Forth, according to the programs set. The water valve will be operating within 10 seconds.

Notes：
One: You set up the time, but the time should more than output time.
Two: If B button under the "0" Reset number,the water valve will be work once.
Three: If A button under the "OFF" the water valve will be closed.

Specifications:
Material: ABS

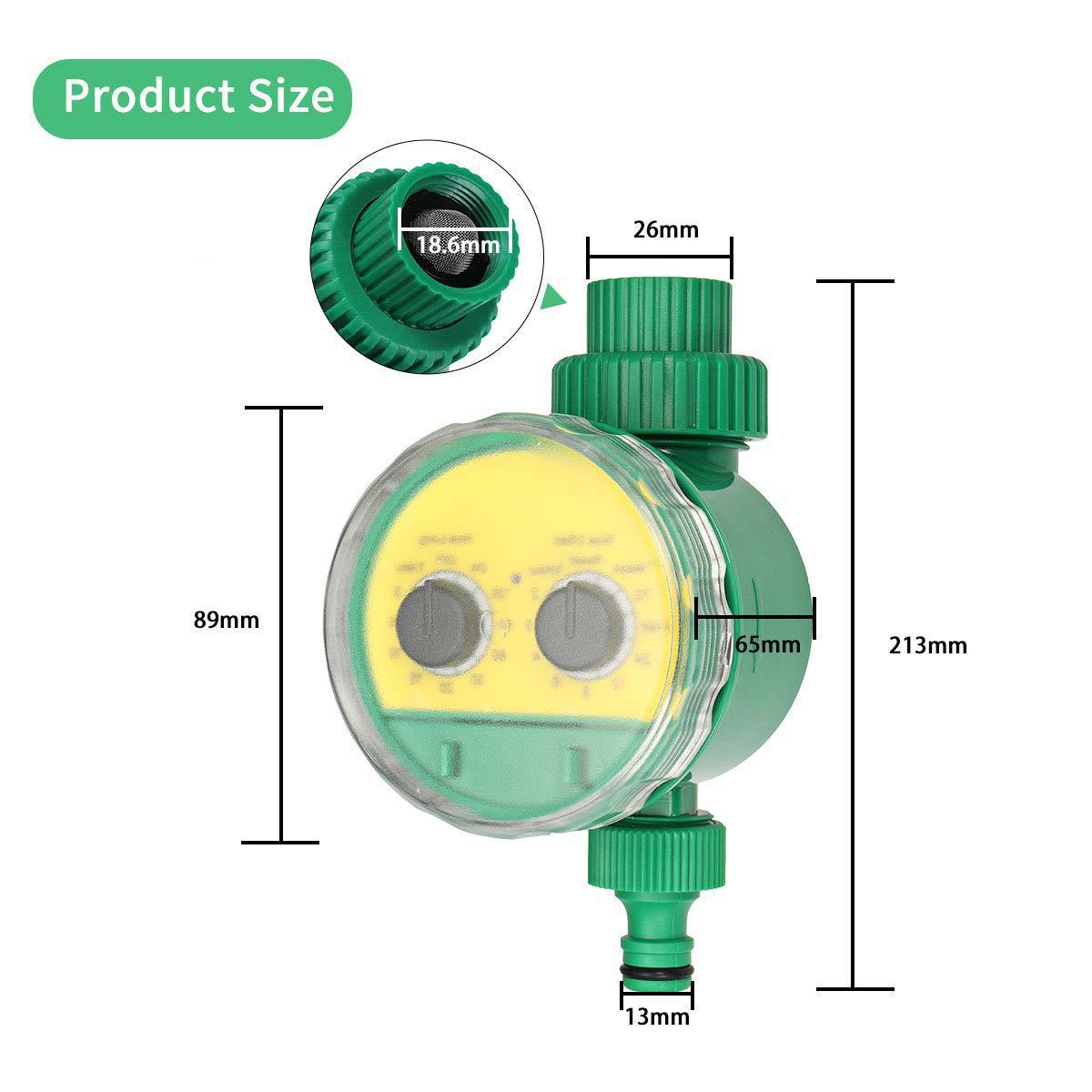

Size: 170x90x85mm/6.69x3.54x3.35in
Water connection: G3 / 4 Faucet thread
Hose connection: 15mm/0.59in (1/2 ) - suitable for all known systems plug-in
Water pressure: 0.5- 4kgs
Water temperature: 0- 40 degrees
Medium irrigation: Fresh clear water
Batteries: 2 X 1.5 V AAA batteries (not included)
Frequency(irrigation): Can be controlled by a whirl button. The minimum of irrigation time is 1hour. Maximum is one week
Water time(irrigation): Can be controlled by a whirl button. The minimum of circle time is 1 minute. The maximum is 120minutes.

Package Content:
1 * Irrigation Controller
1 * Clear Cover
1 * Tap Connector/Adaptor(water filter included)
1 * Collar Ring
1 * Male Hose Connector
1 * User Manual(English)
